System Architecture¶

Cursus turns a pipeline graph plus a set of step configurations into a production-ready SageMaker pipeline. This page is the map: it names the layered subsystems, shows how a request flows from a DAG to a compiled sagemaker.workflow.pipeline.Pipeline, and points to the deeper concept pages for each layer.

If you only remember one sentence: a DAG names the steps and their edges, the configs supply the parameters, and the compiler + assembler + dependency resolver wire them into a real SageMaker pipeline — everything else (the step library, the catalog, the registry, validation, MCP, CLI) exists to make that one transformation discoverable, correct, and automatable.

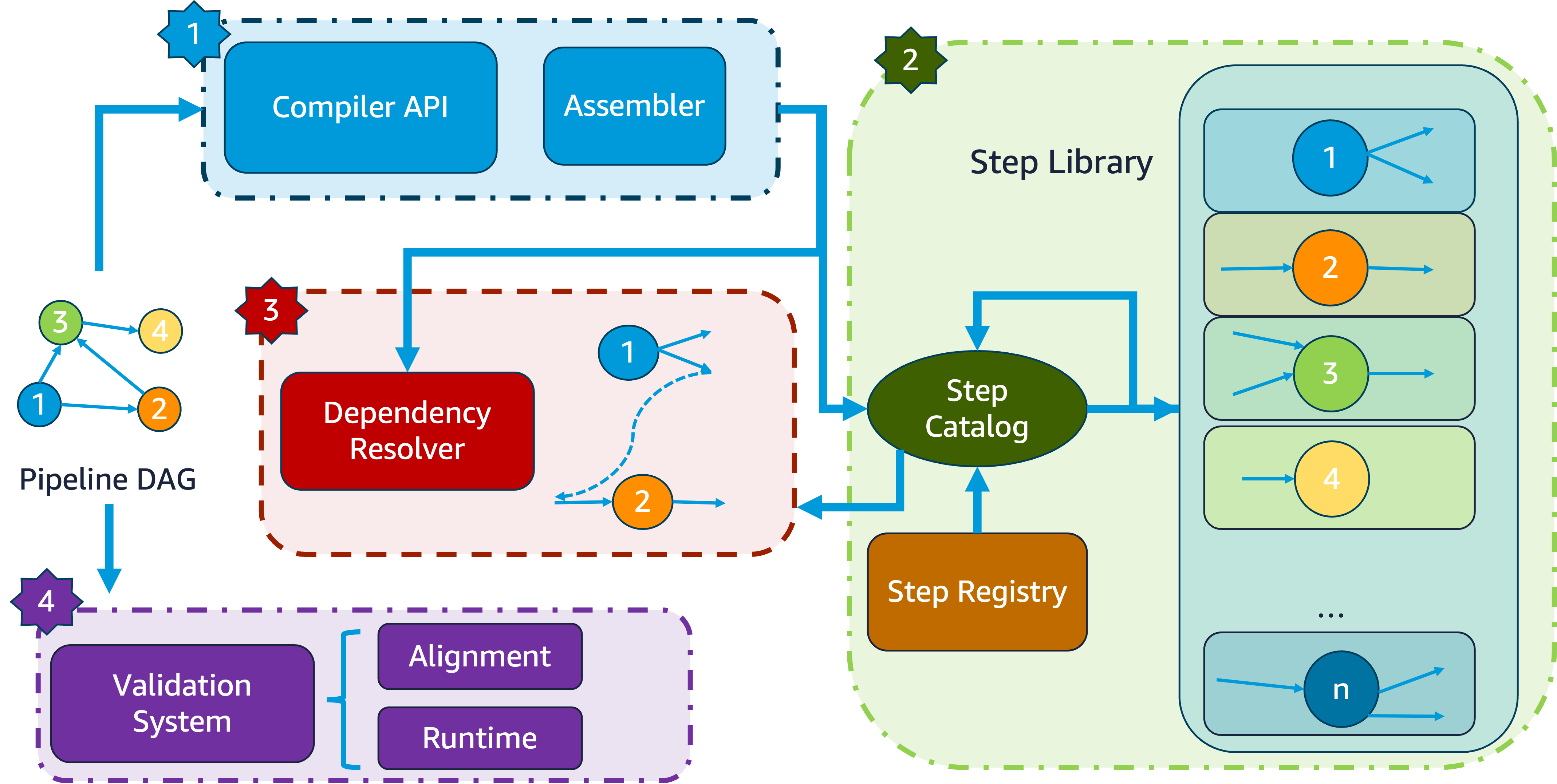

Cursus subsystems — a Pipeline DAG feeds the Compiler API and Assembler, which use the Step Catalog/Registry and Step Library, the Dependency Resolver, and the Validation System. — The Cursus subsystems. A **Pipeline DAG** enters the **Compiler API + Assembler** (1); the **Step Catalog** and **Step Registry** resolve each node to a step from the **Step Library** (2); the **Dependency Resolver** (3) wires producer outputs to consumer inputs; and the **Validation System** (4) checks alignment and runtime behavior.¶

The 10,000-foot view¶

                        YOU AUTHOR
        ┌────────────────────────┐        ┌───────────────────────────┐
        │  PipelineDAG            │        │  config.json / .yaml      │
        │  nodes + edges          │        │  one config per DAG node  │
        │  (api/dag)              │        │  (steps/configs)          │
        └───────────┬────────────┘        └─────────────┬─────────────┘
                    │                                    │
                    └──────────────┬─────────────────────┘
                                   ▼
              ┌──────────────────────────────────────────────┐
              │  PipelineDAGCompiler        (core/compiler)   │
              │   • build a DynamicPipelineTemplate           │
              │   • detect required config classes            │
              └───────────────────────┬──────────────────────┘
                                      ▼
              ┌──────────────────────────────────────────────┐
              │  DynamicPipelineTemplate    (core/compiler)   │
              │   • node  -> config     (StepConfigResolver)  │
              │   • node  -> builder    (StepCatalog)         │
              └───────────────────────┬──────────────────────┘
                                      ▼
              ┌──────────────────────────────────────────────┐
              │  StepCatalog / registry  (step_catalog +      │
              │  registry)                                    │
              │   • load_builder_class("XGBoostTraining")     │
              │   • builder SYNTHESIZED at runtime from the   │
              │     step's .step.yaml  (no builder_*.py)      │
              └───────────────────────┬──────────────────────┘
                                      ▼
              ┌──────────────────────────────────────────────┐
              │  PipelineAssembler          (core/assembler)  │
              │   • builder.create_step(**kwargs) per node    │
              │   • wire edges via dependency resolution      │
              └───────────────────────┬──────────────────────┘
                                      │ uses
                                      ▼
              ┌──────────────────────────────────────────────┐
              │  UnifiedDependencyResolver  (core/deps)       │
              │   • match one step's outputs to the next      │
              │     step's declared inputs (semantic match)   │
              │   • emit PropertyReference wiring             │
              └───────────────────────┬──────────────────────┘
                                      ▼
                        ┌──────────────────────────┐
                        │  sagemaker ...Pipeline    │
                        │  pipeline.definition()    │
                        │  pipeline.start()         │
                        └──────────────────────────┘

  CROSS-CUTTING (used at every stage, not in the linear flow):
   • steps/interfaces  — the .step.yaml contract+spec for each step type
   • pipeline_catalog  — pre-built DAGs you can load instead of hand-building
   • validation        — proves scripts/interfaces/wiring line up (alignment)
   • mcp               — the same engine exposed as JSON tools for LLM agents
   • cli               — the same engine exposed as `cursus` subcommands

Subsystem responsibilities¶

Subsystem	Responsibility	Package path
DAG / graph model	The topology data structure: nodes, edges, topological sort, JSON (de)serialization.	`src/cursus/api/dag` (`PipelineDAG`, `PipelineDAGResolver`, `export_dag_to_json`)
Compiler	Entry point. Wraps a DAG + config into a `DynamicPipelineTemplate`, resolves each node to a config class and a builder, and produces a `Pipeline`.	`src/cursus/core/compiler` (`PipelineDAGCompiler`, `DynamicPipelineTemplate`, `compile_dag_to_pipeline`)
Assembler	Instantiates each step builder, calls `create_step(...)`, and stitches the steps together into the SageMaker `Pipeline`.	`src/cursus/core/assembler` (`PipelineAssembler`, `PipelineTemplateBase`)
Dependency resolution	Semantic matching of one step’s declared outputs to the next step’s declared inputs; produces `PropertyReference` wiring.	`src/cursus/core/deps` (`UnifiedDependencyResolver`, `SemanticMatcher`, `RegistryManager`, `PropertyReference`)
Base interfaces	The shared abstractions: `BasePipelineConfig`, `StepBuilderBase`, `StepInterface` (unified contract+spec), the `TemplateStepBuilder` facade + `PatternHandler` strategies, and enums.	`src/cursus/core/base` (`config_base.py`, `builder_base.py`, `step_interface.py`, `builder_templates.py`, `enums.py`)
Step catalog	Discovery. Given a step name, find its config class, interface, script, and (synthesized) builder across the package and any workspaces. O(1) lookups.	`src/cursus/step_catalog` (`StepCatalog`, `builder_discovery.py`, `config_discovery.py`)
Registry	The canonical step-name table (`STEP_NAMES`) and the construction-strategy routing table — both derived from the `.step.yaml` interfaces, not hand-maintained.	`src/cursus/registry` (`step_names.py`, `interface_registry_loader.py`, `strategy_registry.py`)
Step library	The actual step types: one declarative `.step.yaml` interface + one config class + (usually) one script per step.	`src/cursus/steps/interfaces`, `src/cursus/steps/configs`, `src/cursus/steps/scripts`
Pipeline catalog	Pre-built, reusable DAGs (`*.dag.json`) plus a router that recommends/loads them and helpers that compile them.	`src/cursus/pipeline_catalog` (`shared_dags/`, `core/`)
Validation	Alignment testing — proves that a step’s script, interface, and registry binding line up, and that DAG edges are resolvable.	`src/cursus/validation` (`validation/alignment`)
MCP	The whole engine exposed as framework-neutral JSON-in/JSON-out tools for LLM agents.	`src/cursus/mcp` (`registry.py`, `tools/`, `server.py`)
CLI	The whole engine exposed as `cursus` subcommands for humans.	`src/cursus/cli` (`compile_cli.py`, `dag_cli.py`, `validate_cli.py`, …)

The request flow, step by step¶

1. You author two things¶

A DAG (the shape) and a config file (the parameters). The DAG is a PipelineDAG of node names and directed edges:

from cursus.api.dag import PipelineDAG

dag = PipelineDAG()
dag.add_node("CradleDataLoading")
dag.add_node("TabularPreprocessing")
dag.add_node("XGBoostTraining")
dag.add_edge("CradleDataLoading", "TabularPreprocessing")
dag.add_edge("TabularPreprocessing", "XGBoostTraining")

Node names correspond to step types in the step catalog. The config file carries one configuration object per node (loaded and matched by StepConfigResolver). You don’t have to hand-build the DAG — the pipeline catalog ships ready-made *.dag.json graphs (load_shared_dag, recommend_dag).

2. The compiler wraps it in a template¶

PipelineDAGCompiler (core/compiler/dag_compiler.py) is the top-level entry point. The one-call convenience function is compile_dag_to_pipeline (also exported as cursus.compile_dag):

from cursus.core.compiler import PipelineDAGCompiler

compiler = PipelineDAGCompiler(config_path="config.json")
pipeline = compiler.compile(dag, pipeline_name="fraud-detection")

# Or, to get a diagnostics report alongside the pipeline:
pipeline, report = compiler.compile_with_report(dag)

Internally the compiler builds a DynamicPipelineTemplate (core/compiler/dynamic_template.py), a subclass of PipelineTemplateBase that implements the template’s abstract methods dynamically — it works for any DAG rather than being hand-written per pipeline. On construction it auto-detects the config classes the DAG requires (_detect_config_classes).

3. The template resolves node -> config and node -> builder¶

For each DAG node the template answers two questions:

Which config? StepConfigResolver (step_catalog/adapters/config_resolver.py, re-exported as core.compiler.StepConfigResolver) matches the node name to a loaded config object from your config file.
Which builder? The StepCatalog loads the builder class: StepCatalog().load_builder_class("XGBoostTraining").

4. The catalog synthesizes the builder¶

This is where the 2.0.0 classless-factory design shows up. There is no builder_xgboost_training_step.py file. Instead, for any registry step that has a .step.yaml interface, step_catalog/builder_discovery.py synthesizes a builder class at runtime — type(f"{Name}StepBuilder", (TemplateStepBuilder,), {"STEP_NAME": Name}) — and caches it per process. Every step builder is the same shared TemplateStepBuilder facade (core/base/builder_templates.py) whose construction methods (create_step, _get_inputs, _get_outputs, _get_environment_variables) delegate to one of five PatternHandler strategies:

Handler	Builds
`ProcessingHandler`	Processing steps (both the `code=` and `processor.run()`→`step_args` assembly modes)
`TrainingHandler`	Training steps
`ModelCreationHandler`	CreateModel steps
`TransformHandler`	Batch Transform steps
`SDKDelegationHandler`	MODS/SAIS predefined steps (Cradle / Redshift / Registration / DataUploading)

The right handler is chosen by resolve_handler(sagemaker_step_type, step_assembly, knobs) (defined in core/base/builder_templates.py), which in turn consults the strategy table via resolve_strategy(axis, name) in registry/strategy_registry.py. Per-step behavior that isn’t shared lives as declarative knobs in the .step.yaml patterns: section — not as overridden Python. There is no cursus.steps.builders module and no builder_*.py files; the only way to obtain a builder is through the catalog (StepCatalog().load_builder_class("XGBoostTraining")), which returns the synthesized TemplateStepBuilder subclass.

The registry itself (STEP_NAMES and its derived maps CONFIG_STEP_REGISTRY, BUILDER_STEP_NAMES, SPEC_STEP_TYPES) is likewise derived by construction from the .step.yaml registry: blocks (registry/interface_registry_loader.py::build_registry_from_interfaces) rather than read from a standalone table — so the registry can never drift from the interface files.

5. The assembler builds and wires the steps¶

PipelineAssembler (core/assembler/pipeline_assembler.py) takes the resolved {node: builder} and {node: config} maps and, in topological order:

Instantiates each builder and calls builder.create_step(**kwargs) to produce a real SageMaker step. The call site has no isinstance gate, so a runtime-synthesized builder is indistinguishable from a hand-written one.
For each DAG edge, asks the dependency resolver how the upstream step’s outputs satisfy the downstream step’s declared inputs.

6. The dependency resolver connects the edges¶

UnifiedDependencyResolver (core/deps/dependency_resolver.py) does the intelligent wiring. Each step’s .step.yaml declares its dependencies (what it needs) and outputs (what it produces), including compatible_sources and property_path. The resolver’s SemanticMatcher matches an upstream OutputDecl to a downstream DependencyDecl by logical name/alias and type, and emits a PropertyReference — the SageMaker runtime handle that carries one step’s output into the next step’s input. RegistryManager / SpecificationRegistry scope these specs so multiple pipelines don’t collide.

Because the wiring keys entirely on .step.yaml spec data carried on builder.spec (plus the DAG node name) and never on a Python class, collapsing the former per-step *StepBuilder classes into one facade leaves every edge intact.

7. Out comes a SageMaker pipeline¶

The assembler returns a sagemaker.workflow.pipeline.Pipeline. You can inspect pipeline.definition() or run pipeline.start(). The public compiler API (PipelineDAGCompiler, compile_dag_to_pipeline, compile_with_report) is stable across the 2.0.0 rewrite: the same DAG + the same config compiles to the same pipeline.

The unified step interface (`.step.yaml`)¶

The keystone of the architecture is the single declarative interface per step, introduced in 1.8.0 and completed in 2.0.0. Before 1.8.0 a step needed a *_contract.py (script I/O) and a *_spec.py (dependency demand/supply) and a builder_*.py. Now a step is:

steps/interfaces/xgboost_training.step.yaml   # contract + spec + registry block
steps/configs/config_xgboost_training_step.py # the typed config class
steps/scripts/xgboost_training.py             # the script (if any)

The .step.yaml is parsed into a single Pydantic StepInterface (core/base/step_interface.py) that is a superset of the old ScriptContract and StepSpecification. It exposes:

.contract — entry_point, expected_input_paths, expected_output_paths, expected_arguments, required_env_vars, etc.
.spec — step_type, node_type, dependencies, outputs, and helpers like list_required_dependencies() / get_output_by_name_or_alias().

Contract↔spec alignment (inputs match dependency keys, outputs match output keys, paths are valid SageMaker paths) is enforced as a construction-time Pydantic invariant — a bad interface fails to load, rather than failing a separate validation tier. This one object is the message passed between the dependency resolver, the builder, and the assembler.

Cross-cutting subsystems¶

These aren’t stages in the linear flow; they wrap or observe it.

Validation (alignment)¶

validation/alignment proves the pieces line up. In the 2.0.0 boundary model, validation checks the three things construction can’t self-verify:

B1 — script↔interface fidelity (AST analysis of the script against its .step.yaml).
B2 — cross-step DAG resolvability (every edge’s inputs are satisfiable, including the SageMaker property-path check).
B3 — registry↔handler↔config binding (validation/alignment/validators/registry_binding_validator.py): the handler resolves, the builder loads/synthesizes, and the config covers the fields the handler reads. If B3 passes, the step is constructible.

Run it via cursus alignment — the Unified Alignment Tester (see the CLI). (cursus validate covers the complementary local script-testing and author-time .step.yaml checks.)

Pipeline catalog¶

pipeline_catalog is a queryable store of pre-built DAGs (shared_dags/*.dag.json, indexed by catalog_index.json) plus:

router.py — recommend_dag / auto_select_dag scoring over the index,
core/builders.py — build_and_compile (SAIS) and build_mods_pipeline (generates a MODS template class on demand),
load_shared_dag / search_dags — load or search by feature/framework.

So instead of hand-building a DAG you can load_shared_dag(...) and pass it straight to the compiler. See the pipeline catalog reference.

MCP (agent surface)¶

cursus.mcp exposes the engine as JSON-in / JSON-out tools grouped into namespaces (catalog, dag, config, compile, validate, execdoc, pipeline_catalog, steps, strategies, plus author, project, and a tools meta-namespace for tool introspection). It is framework-neutral: the same ToolDef registry (mcp/registry.py, a name -> ToolDef dict) drives an MCP server (mcp/server.py), OpenAI function-calling, and Claude tool use.

from cursus.mcp import get_registry, call_tool

result = call_tool("catalog.search", {"query": "xgboost"})
result.ok    # True / False
result.data  # JSON-serializable payload

Each call returns a ToolResult envelope (mcp/envelope.py) with .ok, .data, .error, .remedy, and .next_steps fields. Argument schemas are validated per tool — for example catalog.list_steps accepts only workspace_id / job_type filters, while catalog.search requires a query.

Because a step is now one .step.yaml + one config (no builder file), an agent can author a step and configure a pipeline entirely by tool-calling. The optional stdio server (pip install "cursus[mcp]", then cursus-mcp) is read-only by default — state-changing tools are opt-in via env vars — and exposes host-legal tool names (dots become __) with per-tool safety annotations. See the agent (MCP) tool surface and the MCP tools reference.

CLI¶

cursus.cli is the human counterpart to MCP — the same capabilities as cursus subcommands (compile, dag, config, validate, alignment, exec-doc, pipeline-catalog, projects, catalog, registry, steps, strategies, mcp). See the CLI reference.

How the layers depend on each other¶

   cli ─┐                      ┌─ mcp
        └──────────┬───────────┘
                   ▼
        core/compiler  ──▶  core/assembler  ──▶  core/deps
                   │                 │                 │
                   ▼                 ▼                 ▼
             step_catalog ◀───▶  registry  ◀───▶  core/base
                   │                 │                 │
                   ▼                 ▼                 ▼
       steps/{interfaces, configs, scripts}   +   pipeline_catalog
                                     ▲
                                     │
                              validation (alignment)

core/base is the foundation everyone imports (StepInterface, StepBuilderBase, BasePipelineConfig, the TemplateStepBuilder facade, enums). It depends on nothing else in this list.
step_catalog + registry are the discovery/derivation layer: they read the steps/interfaces/*.step.yaml files and expose lookups.
core/compiler, core/assembler, core/deps are the runtime engine.
cli and mcp are two thin surfaces over that engine; pipeline_catalog feeds it pre-built DAGs; validation observes it.

Where to go next¶

DAG and compilation — the graph model and the compile flow in depth.
API reference — the classes and functions named here.
Step catalog — the full list of step types.
Pipeline catalog — the pre-built DAGs.
MCP tools — the agent tool surface.
CLI — the cursus command groups.
